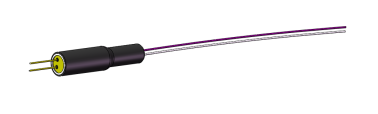

Tap-pd spectroscopic receiver detector
Spectral ratio of 1%, 2%, 3%, 5%, 10%, namely 1:99, 2:98, 3:97, 5:95, 10:90
Characteristics and Applications
features
Low dark current
Low insertion loss
High return loss
High linearity
High reliability
Compliance with RoHS standards
The main application
5G forward channel optical power monitoring module
Main photoelectric index
parameter | symbol | The minimum value | Typical values | The maximum | unit | instructions | |
Working wavelength | λ | 1100 | — | 1650 | nm | ||
ratio | Tr | 1%、2%、3%、5% | |||||
Spectral response | 1% | R | 0.007 | — | 0.014 | A/W | λ=1310nm |
2% | 0.014 | — | 0.024 | ||||
3% | 0.024 | — | 0.034 | ||||
5% | 0.04 | — | 0.06 | ||||
Dark current | Id | — | 0.3 | 1 | nA | Vr=5V | |
Return loss | RL | 40 | — | — | λ=1310/1550nm | ||
capacitance | C | — | — | 0.6 | pF | Vr=5V，F=1MHz | |
Polarization dependent loss | PDL | — | — | 0.1 | dB | ||
Plug loss thermal stability | — | 0.005 | — | dB/℃ | |||
Optical power capacity | — | — | 500 | mW | ||
Encapsulation structure | TO46：φ5.6×26mm TO33：φ4.0×20mm | |||||
Forward current | If | — | — | 10 | mA | |
Reverse voltage | RL | — | — | 20 | V | |
Working temperature | Top | -25 | +25 | +85 | ℃ | |
Storage temperature | Tstg | -40 | +25 | +85 | ℃ | |
Ordering Information
| LU | 1— | W | 2— | SM | 0.25 — | B01 | - 100 |
P：single fiber T：Tap
| Connector typeSA:SC/APC FA:FC/APC LA:LC/APC SU:SC/UPC FU:FC/UPC LU:LC/UPC N：none | Overall dimensions 1=φ5.6mm 2=φ6.5mm 3=φ4.0mm | The wavelength W=1260~1650 31=1310 55=1550 1315=1310/1550 8531=850/1310 |
3=3% 5=5%
| Optical fiber type SM：9/125um (G.652D) M5: Multi-mode fiber MM50/125um | Bare fiber size 0.9=900um loose fiber
| Pin definition A：Type A B：Type B Numbers: |
50=50cm
|
For other details, please refer to the product specification or consult the sales staff.
